Lithium Polymer Battery

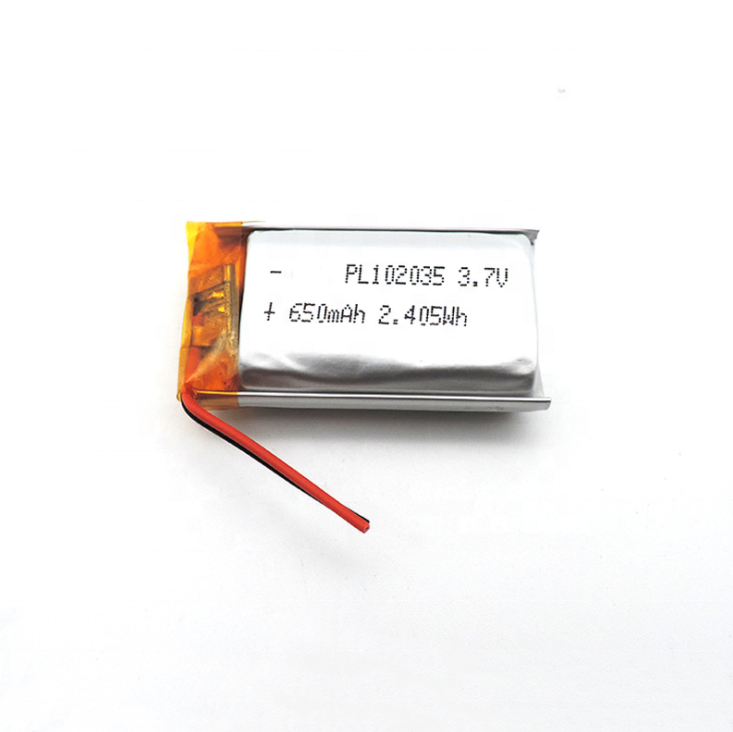

Created with Pixso. 102035 3.7V 650mAh Lithium Polymer Battery Rechargeable High Capacity Factory Supply

102035 3.7V 650mAh Lithium Polymer Battery Rechargeable High Capacity Factory Supply

Brand Name: VATS Battery
Model Number: 102035
MOQ: 1 Piece
Price: US $0.72 - 1.48
Delivery Time: 7-20 Days
Payment Terms: T/T
Detail Information
Place of Origin:
Guangdong, China
Certification:
IEC62133 / UL / CE / CB / KC / UN38.3 / MSDS
Nominal Voltage:
3.7V
Nominal Capacity:
650mAh
Dimensions:
9.8×20×35mm (T×W×L)
Cycle Life:
500 Times
Charging Voltage:
4.2V
Cut-off Voltage:
3.0V
Packaging Details:
Industrial carton packaging that meets international air and sea shipping standards
Supply Ability:
300,000 Pieces per Day
Highlight:

102035 Lithium Polymer Battery

,

3.7V 650mAh Rechargeable Battery

,

Custom 102035 Lipo Pouch Cell

Product Description
Product Overview

The 102035 3.7V 650mAh Lithium Polymer Battery is a rechargeable lithium-polymer pouch cell engineered by VATS Battery for reliable, long-lasting power in modern electronic devices. Manufactured by an ISO9001-certified lithium battery maker based in Guangdong, China, this compact cell combines a stable 3.7V nominal voltage with a true 650mAh capacity, allowing portable devices to run longer on a single charge without adding bulk.

Each cell is produced on automated lines and individually screened for capacity, voltage and internal resistance before shipment, keeping batch-to-batch consistency high and making the 102035 a dependable drop-in power source for OEM and ODM programmes. Because the chemistry, dimensions and protection circuit can all be customized, engineers can either select this standard model or request a bespoke cell developed around a specific power, footprint and cost target.

Technical Specifications
Parameter Specification
Model Number102035
Battery TypeLi-polymer
Battery Size9.8 × 20 × 35 mm (T × W × L)
Nominal Voltage3.7V
Nominal Capacity650mAh
Charging Voltage4.2V
Cut-off Voltage3.0V
Standard Discharge Current0.2C–0.5C
Max Discharge Current1C
Cycle Life500 times
Operating TemperatureCharge 0~45°C / Discharge -20~60°C
ConnectorJST / Molex (optional)
CertificationIEC62133 / UL / CE / CB / KC / UN38.3 / MSDS
OEM / ODMAcceptable
SampleFree sample available
ApplicationDigital products, Bluetooth devices, GPS trackers, power banks and portable electronics
Warranty12 months
Place of OriginGuangdong, China
Key Features
  • True Rated Capacity: Delivers a genuine 650mAh at 3.7V, verified by capacity, voltage and internal-resistance testing on every production lot.
  • Stable Output: A flat discharge curve holds close to 3.7V, protecting sensitive circuits and extending usable runtime.
  • Long Cycle Life: Rated for more than 500 charge–discharge cycles with excellent capacity retention.
  • Certified Safety: Compliant with IEC62133 / UL / CE / CB / KC / UN38.3 / MSDS, with built-in protection against over-charge, over-discharge, over-current and short circuit.
  • Flexible Customization: Size, capacity, voltage, connector, wire length and PCM can be tailored to your design; OEM and ODM are both welcome.
  • Ready to Integrate: Supplied with JST / Molex (optional) connectors so the cell can drop straight into your assembly line.
Applications

Thanks to its slim, lightweight build and stable 3.7V output, the 102035 fits a wide range of applications including digital products, Bluetooth devices, GPS trackers, power banks and portable electronics. Typical end products are Bluetooth speakers and headsets, fitness wearables and smart watches, GPS trackers, medical and healthcare instruments, beauty and personal-care devices, IoT sensors, LED lighting, toys and portable power banks. Its customizable connector and protection circuit simplify integration, reducing assembly time and supporting both prototyping and high-volume mass production.

Packaging & Quality Assurance

Every 102035 is packed in industrial cartons with anti-static trays and shock-absorbing material that meet international air and sea shipping standards, protecting the cells throughout transport. VATS Battery produces over 300,000 cells per day and exports to more than one hundred countries, offering a seven to twenty day lead time, free samples for evaluation, and a twelve-month warranty.

If you need datasheets, samples or a custom specification, contact our sales team and we will match the right cell to your project and support you from prototype through mass production.
